ES Series
Double-Suction Split Casing Pump — Horizontal, Single-Stage
FlowCore ES series split casing pumps are designed with double suctions. This kind of pumps are of high flow rate, high efficiency, stable operation, low noise and long service life, easy to install and maintain. Widely used in plant, mine, city water supply, irrigation, HVAC and vessel industry.
| Product Series | ES Series |
| Pump Type | Double-Suction Split Casing (Horizontal) |
| Capacities (Flow Rate) | 36 ~ 3,400 m³/h |
| Heads | 8 ~ 190 m |
| Discharge Size (DN) | 50 ~ 350 mm |
| Speed | 1,480 / 2,980 rpm (50Hz) · 1,780 / 3,580 rpm (60Hz) |
| Max. Working Pressure | 1.6 MPa (standard) · 2.5 MPa (on request) |
| Max. Temperature | 85 °C (standard) · 105 °C (on request) |
| Conveying Medium | Clean water or liquids similar to clean water in physical property |
| Performance Standard | GB/T5657-95 · Q/FZEF 001-2014 |
| Flange | DIN2501 PN16 · GB/T17241.6 PN1.6 |
Applications
- HVAC and Cooling Tower
- Municipal Water Supply
- Pump Station
- Marine and Ship Building
- Power Plant / Water Plant
- Industrial water supply system
- Fire Fighting System
Design & Structure
- Horizontal — แนวนอน ติดตั้งง่าย
- Double-Suction — ใบพัดดูดสองด้าน สมดุลแรงตามแนวแกน
- Single-Stage — ปั๊มขั้นเดียว
- Split-Casing — ตัวเรือนแบบแยกครึ่ง ดูแลรักษาง่าย
- High Flow Rate — อัตราการไหลสูง เหมาะงานน้ำปริมาณมาก
- Low Noise & Vibration — ทำงานเงียบ สั่นสะเทือนต่ำ อายุการใช้งานยาว

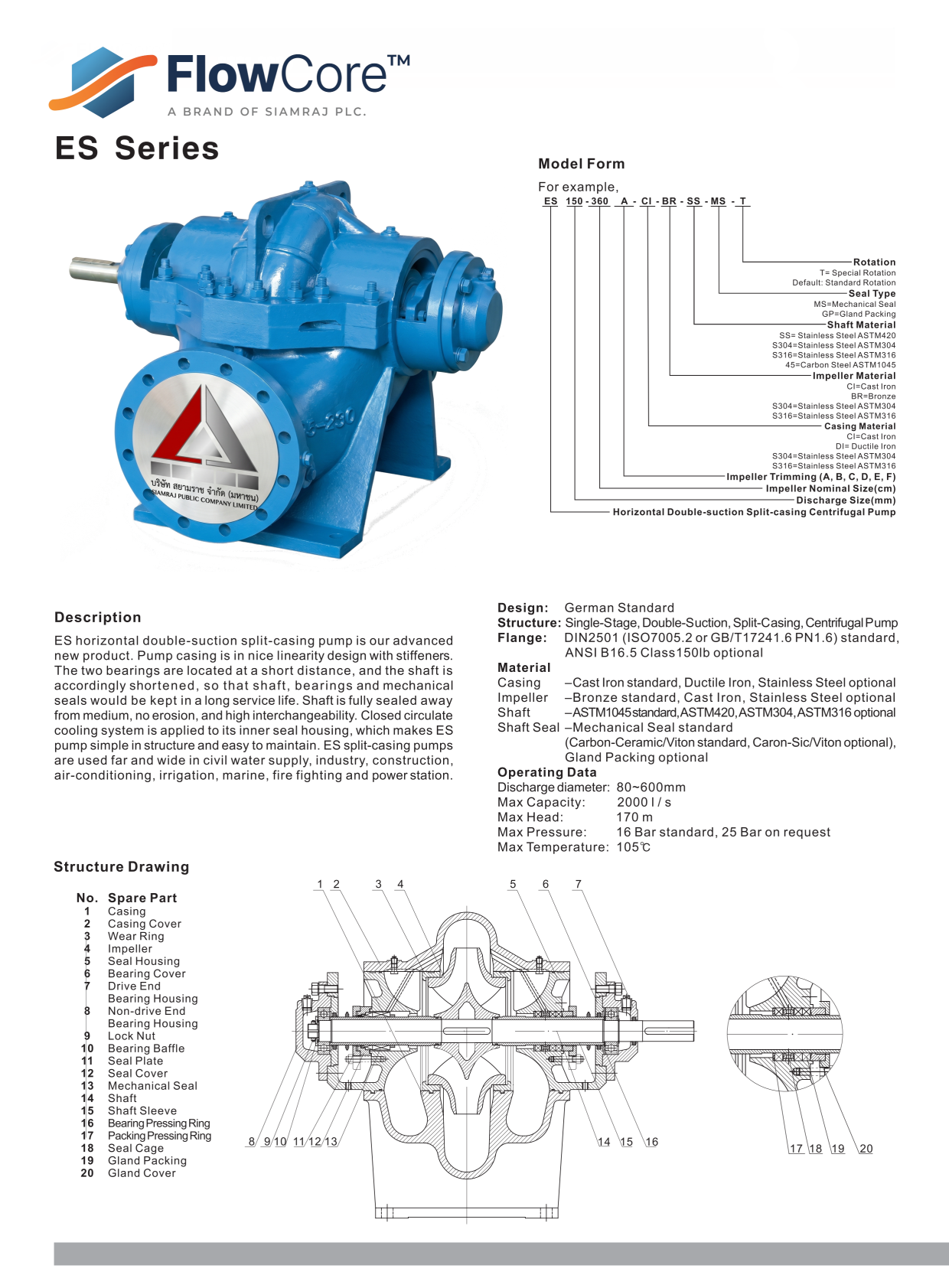

ES Series Structure Drawing & List of Parts
Material
| Part | Standard Material | Options on Request |
|---|---|---|
| Casing | Cast Iron | Ductile Iron |
| Impeller | Brass | Bronze / ASTM304 (CF8) / ASTM316 (CF8M) |
| Shaft | ASTM 1045 | ASTM420 / ASTM304 / ASTM316 |
| Shaft Seal | Mechanical Seal | Gland Packing |
Material Code: Casing – Impeller – Shaft · e.g. Cast Iron + Brass + ASTM1045
| Code | Material |
|---|---|
| C | Cast Iron |
| Q | Ductile Iron |
| B | Brass |
| B85 | Bronze |
Seal Type: M = Mechanical Seal · P = Gland Packing
| Code | Seal Type |
|---|---|
| M | Mechanical Seal |
| P | Gland Packing |
Operating Data
| Parameter | Value |
|---|---|
| Product Series | ES Series |
| Pump Type | Double-Suction Split Casing (Horizontal) |
| Capacities (Flow Rate) | 36 ~ 3,400 m³/h |
| Heads | 8 ~ 190 m |
| Discharge Size (DN) | 50 ~ 350 mm |
| Speed | 1,480 / 2,980 rpm (50Hz) · 1,780 / 3,580 rpm (60Hz) |
| Max. Working Pressure | 1.6 MPa (standard) · 2.5 MPa (on request) |
| Max. Temperature | 85 °C (standard) · 105 °C (on request) |
| Conveying Medium | Clean water or liquids similar to clean water in physical property |
| Performance Standard | GB/T5657-95 · Q/FZEF 001-2014 |
| Flange | DIN2501 PN16 · GB/T17241.6 PN1.6 |

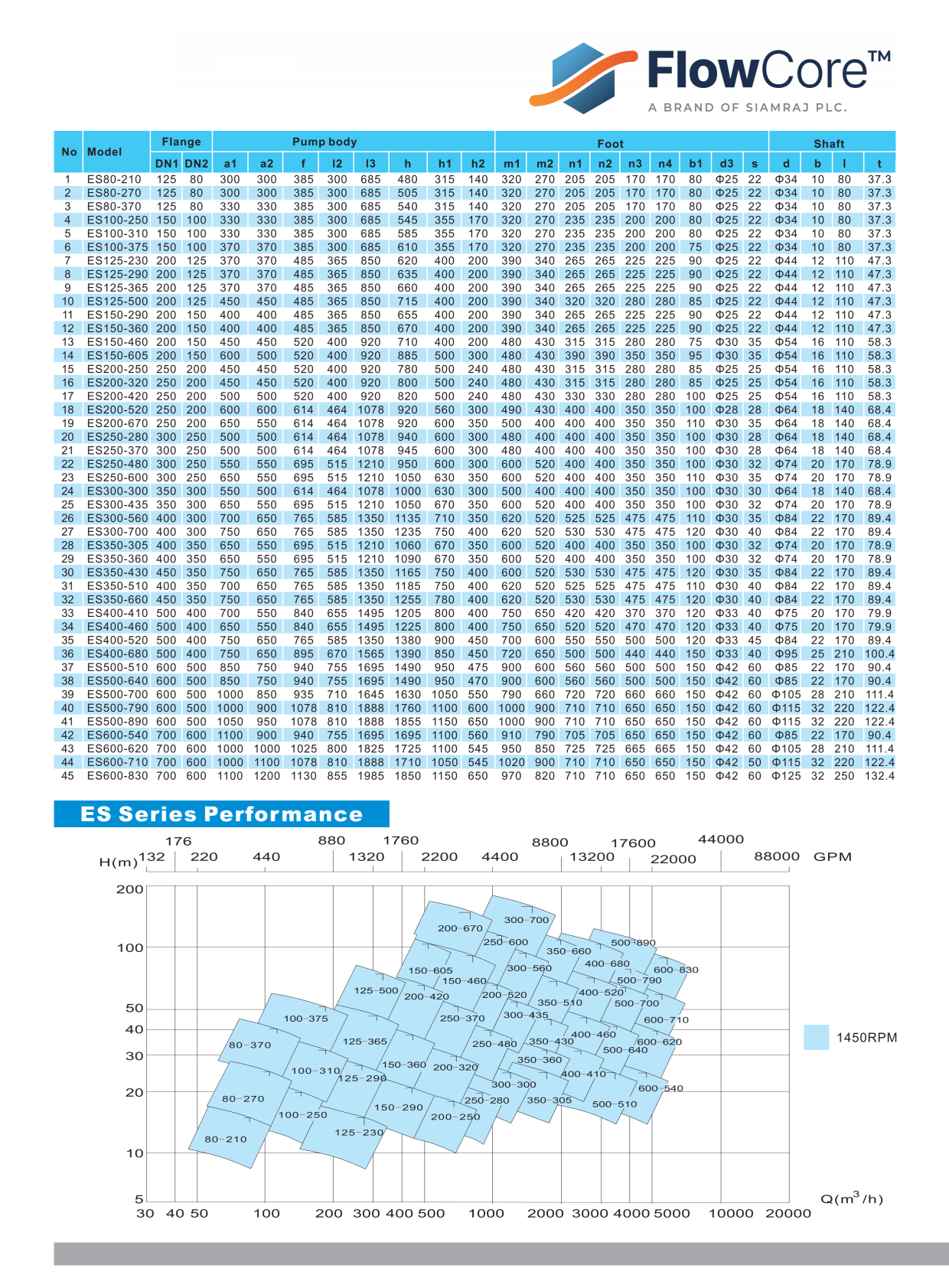

ES Series Performance Curves
Dimensions & Installation
Outline drawing with installation dimensions and flange standards (ISO7005.2 / DIN2501 PN16 / GB/T17241.6 PN1.6).

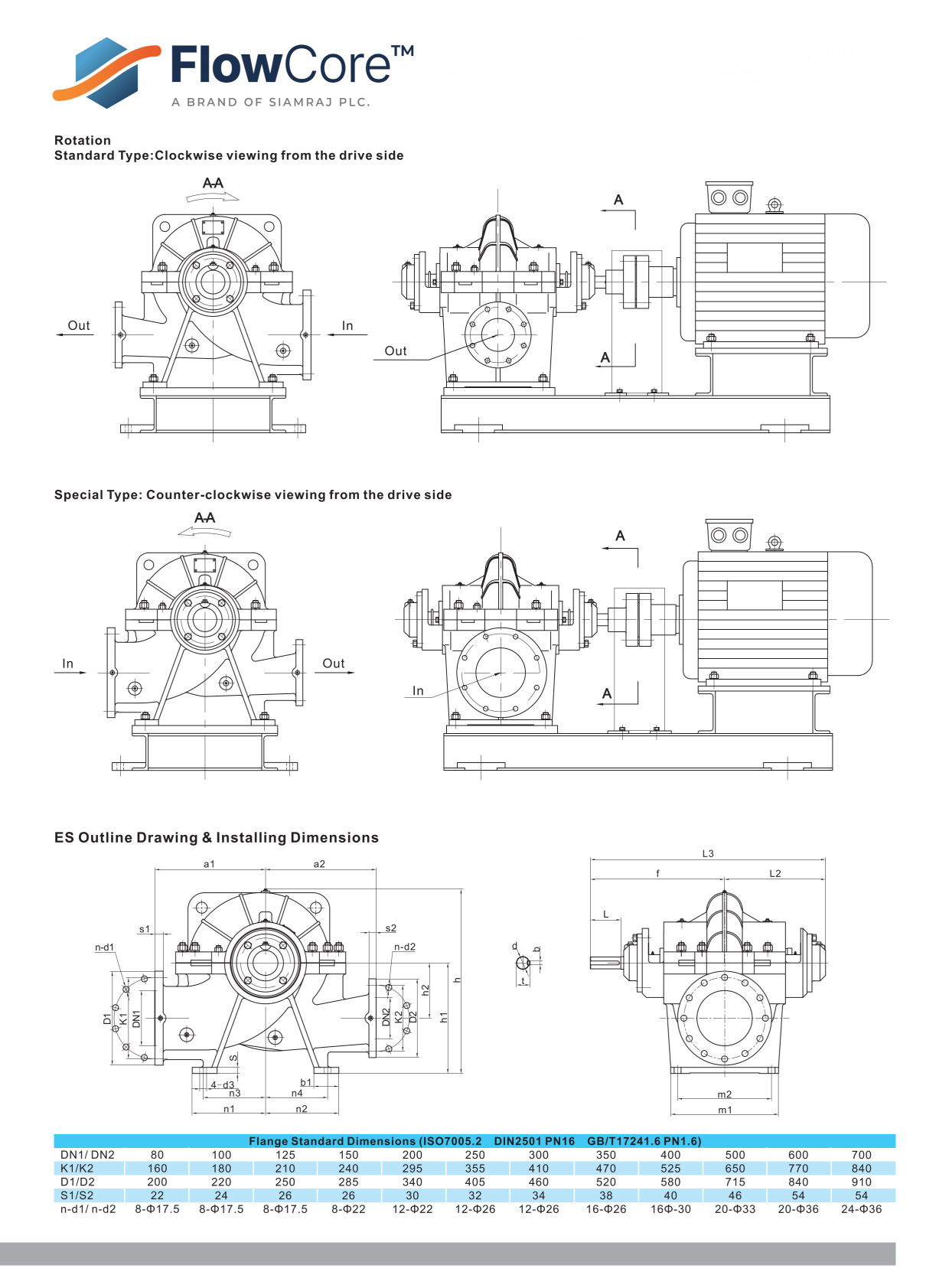

ES Series Outline Drawing & Installation Dimensions
Model Instruction
รหัสรุ่น:
ตัวอย่าง: ES150-360 — ES series, ขนาดท่อจ่าย 150 mm, ใบพัด 360 mm (Impeller Nominal Diameter 300–700 mm)
ES - Discharge Size - Impeller Nominal Diameter - Material Codeตัวอย่าง: ES150-360 — ES series, ขนาดท่อจ่าย 150 mm, ใบพัด 360 mm (Impeller Nominal Diameter 300–700 mm)
